Preface

This all started during the winter of 2019.  The main reason why you are reading this book is because of IB. What is IB? It is a school board, which I have been doing for a few years. This was the last unit in one of my subjects for my course. We were given a topic, "NO ONE IS TOO SMALL TO MAKE A DIFFERENCE". I think I have used this opportunity well and have made a difference in the society. Not only me, even you guys can make a difference.

I took a lot of time to choose what is the best thing to do, in order to make a difference. This what my book is about. I would like to thank my teachers, parents and peers who have helped me throughout this journey. I want to give extra credits to the lab assistant, without who this product would not have existed.

                                                                                                                                                                                                                            Your Author



Chapter 1: Goal



Form the above sustainable goals I have chosen is Industry, Innovation and Infrastructure. I think this is the most suitable goal because I want to come up with something new which can help conserve more water in the future. There are already a few ways in which water is getting conserved. I want to come up with a plan where water can be saved by everyone. The best way to conserve water is by doing rainwater harvesting. Therefore, my goal is to come up with a plan to do rainwater harvesting.



Chapter 2: Materials Required



Wooden Block  Drilling Machine Nails Drill Bit G-Clamp Pipes  Scissors Tape Glugon Dustbin  Plastic bottles Charcoal Stones Pencil Chapter 3: Process



Step 1: Make the markings of the holes on the wooden piece and then mark the place where the house or apartment is

Step 2: Use a g-clamp and fix the wooden piece at one place

Step 3: Use the drilling machine to drill the holes. Use the same drill bit throughout the wooden piece

Step 4: Use the smallest pipes and make holes only on one side of the pipe. The holes on the pipe should be right under the holes on the wooden piece

Step 5: Tape the pipes right under the holes

Step 6: Take the bigger pipe and make holes using a drilling machine. The holes should be the exact size of the small pipes

Step 7: Push all the small pipes into the big one

Step 8: Tape that part where the small pipes get inside the big pipe

Step 9: Use a glugon and glue the wooden piece to the pipe

Step 10: Take the dustbin. Reverse the top part and stick it use a glugon.

Step 11: Make a hole in the roof (on the sides). For the water from the roof to come to the ground.

Step 12: Add 4 wooden blocks on each side of the wooden piece. (5cm)

Step 13: Cut a plastic bottle into 2 halves

Step 14: Place the cap part on the filter paper and cover all the gaps.

Step 15: Add stones, then charcoal and then another layer of stones. Then add a filter paper on the top

Step 16: Reverse the first half and place it in the second half.

Step 17: Make a hole on top of the filter, for the big pipe to enter

Step 18: Make a storage tank by cutting another bottle into half

Step 19: Connect a pipe between the filter and the storage tank

Step 20: Cover the storage tank

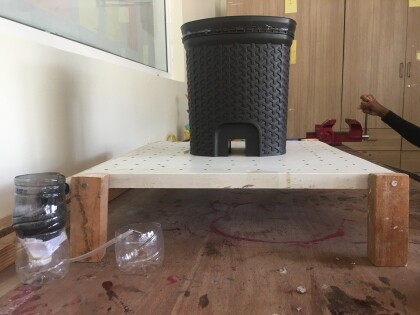

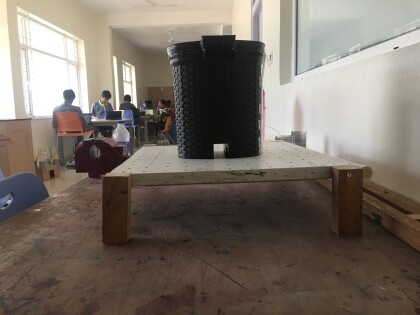

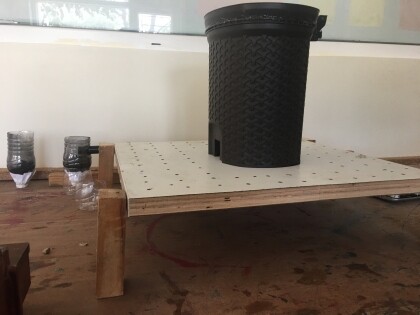

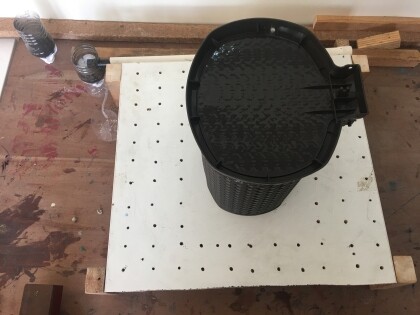

Chapter 4: Photos
